Laminar Jets create a perfectly clear, glass-like stream of water. This very impressive water effect is created by a complex structure inside the jet and the result is almost like an optical illusion.
The stream is very clear and round and creates virtually no sound at all when it falls onto the water surface. The integrated, full-color lighting engine makes it look like fiber-optics at night. The RGBW LED can be programmed in any color or sequence for impressive light shows.
It’s a great type of water features for swimming pools, architectural water features, indoor fountains and more.
- Glass-like Stream
- Very impressive effect
- Internal Lighting
- Premium Finishing
- Made of Stainless Steel

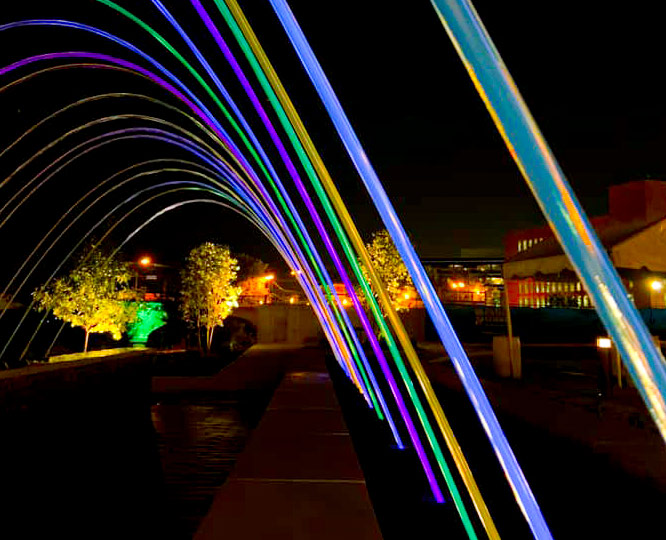

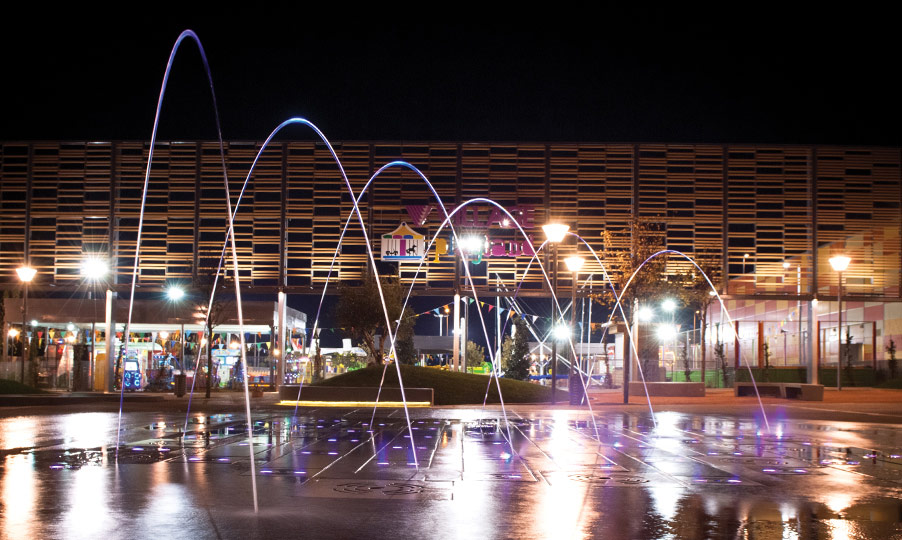

Application Inspiration:
Technical Specifications
Mechanical
Diameter:
275mm 11 inches
Total Height:
255mm 10 inches
Mounting:
Heavy-futy bracket for floor mounting.
Trajectory:
30°- 80°
Inlet
1″ BSP/NPT
Material
Stainless Steel AISI 316L 1.4404
Premium Satin finished with brushed details and laser etched details.
Application
Fresh, Pool and Sea water
Nozzle
Laminar Precision Nozzle ⌀14mm
Available with ⌀12mm on request.
Refer to the Hydraulic Performance Table to review the flow requirements of available nozzles.
Lighting
8W 24V DC Full-Color RGBW LED
addressable, with concentrated optics and embedded self-protections
Self Protection
Yes
The embedded processor constantly monitors the operation of the fixture to ensure optimal operation.
The Active Thermal Protection system uses a smart algorithm to gradually reduce the brightness in case of overheating, ensuring the max. possible light output.
Additional hardware systems provide overvoltage, voltage surge and reverse polarity protection.
Cable
3.0 meters Chlorine-Resistant Waterproof Cable
12ft type SOOW for North America, UL Listed version
5m, 10m, 15m or custom lengths available on request
Hydraulic Performance & Data
Standard Nozzle – 14mm
45° Installation
| Height [m] | 0.67 | 0.78 | 0.91 | 1.02 | 1.14 | 1.26 | 1.39 |
| Length [m] | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Flow [lpm] | 25.9 | 28.3 | 31.2 | 33.5 | 35.8 | 37.9 | 39.8 |
| Head [m] | 1.85 | 2.15 | 2.49 | 2.8 | 3.1 | 3.49 | 3.85 |
60° Installation
| Height [m] | 0.85 | 0.97 | 1.07 | 1.27 | 1.48 | 1.7 | 1.91 | 2.12 | 2.32 |
| Length [m] | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 |
| Flow [lpm] | 23.5 | 25 | 27.7 | 31.1 | 34 | 36.5 | 39 | 41 | 43.3 |
| Head [m] | 1.75 | 1.87 | 2.09 | 2.5 | 2.89 | 3.3 | 3.7 | 4.07 | 4.46 |
75° Installation
| Height [m] | 1.24 | 1.55 | 2.02 | 2.45 | 2.86 | 3.4 | 4.25 |
| Length [m] | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |
| Flow [lpm] | 27.3 | 31.1 | 35.9 | 40.1 | 43.4 | 50.1 | 53.9 |
| Head [m] | 2.04 | 2.54 | 3.21 | 3.87 | 4.448 | 5.83 | 6.68 |
Requirements: 50 microns filtrated water. Windless conditions. Non turbulent water supply. Use of line filter is recommended.
