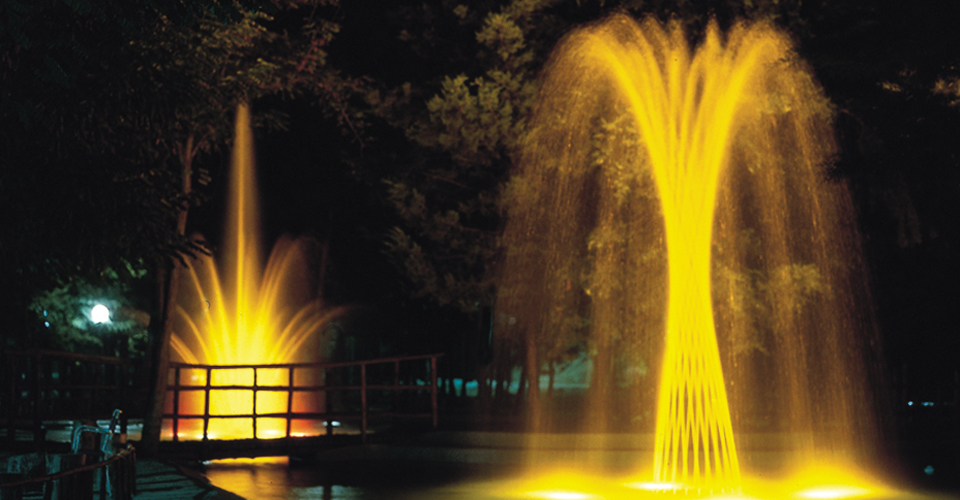

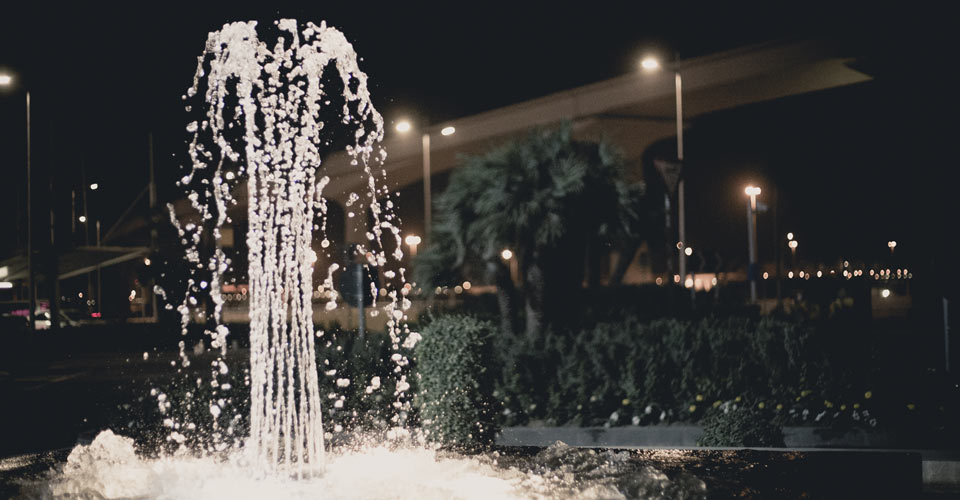

The radical arrangement of the nozzles in this fountain head creates an uncommon hourglass-like water shape.
High level of manufacturing precision in combination with the all-stainless steel construction makes a superior quality fountain head which produces a totally uniform pattern. Spectacular when multi-color illuminated.
- Hourglass-like Water Pattern
- High level of Manufacturing Precision
- Heavy-duty Machined Construction
- Made of Stainless Steel
- Water Level Independent Nozzle
Application Inspiration:
Technical Specifications
| Model | Inlet |
No. of Nozzles | A |
B |
Suction Strainer Openings Required |
Spray Height | |||||||||
| 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 | |||||||
| KX 201 | 2″ | 18 x 6.0 mm | 258 | 200 | 3.0 mm | L/min | 172 | 193 | 218 | 245 | 269 | 293 | 321 | 362 | 405 |
| Head [m] | 1.5 | 2.2 | 2.9 | 3.6 | 4.4 | 5.2 | 6.1 | 8.2 | 9.6 | ||||||
| KX 203 | 3″ | 18 x 8.0 mm | 308 | 232 | 4.0 mm | L/min | 273 | 339 | 392 | 436 | 483 | 524 | 560 | 629 | 701 |
| Head [m] | 1.6 | 2.5 | 3.3 | 4.2 | 5.1 | 5.9 | 6.9 | 8.7 | 10.7 | ||||||
Downloads
You can download any of the following files for your own personal use. Information contained in these files might change without prior notice. Copy in part or in whole, as well as reproduction, publication, distribution or any other use are strictly prohibited without written consent by Fontana.
