Bubbler jets create a solid, foamy and bulky water mound at lower heights which becomes scattered but still massive, highly aerated and visible at greater spray heights.
This kind of nozzles are placed underwater and the water effect depends on surface ripples in addition to how deep the nozzle is installed. The theory behind the Bubbler is taking in air by the snorkel(s), mixing it with water flowing inside the nozzle, pressurizing and directing the mixture upwards which is then enriched by the water above the nozzle, resulting in the unique “bubbler effect” – a wider cascade effect.
Bubbler jets are made entirely of premium stainless steel.
- Foamy & Bulky Water Mound
- Very Rich Air & Water Mixture
- Highly Visible & Wind Resistant
- Heavy-duty Machined Construction
- Made of Stainless Steel 316L
- Water Level Dependent Nozzle

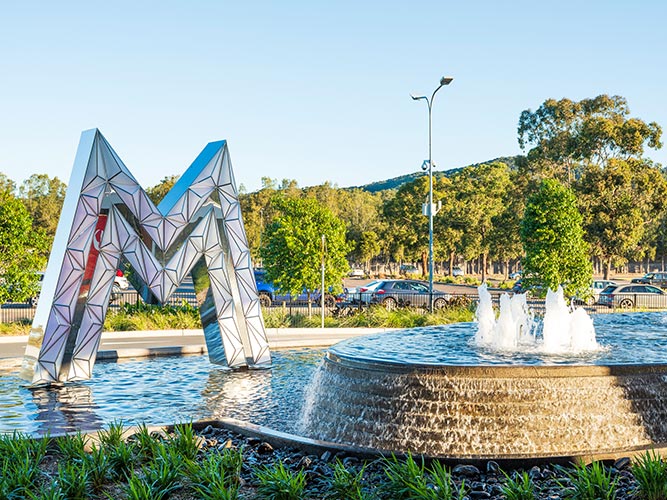

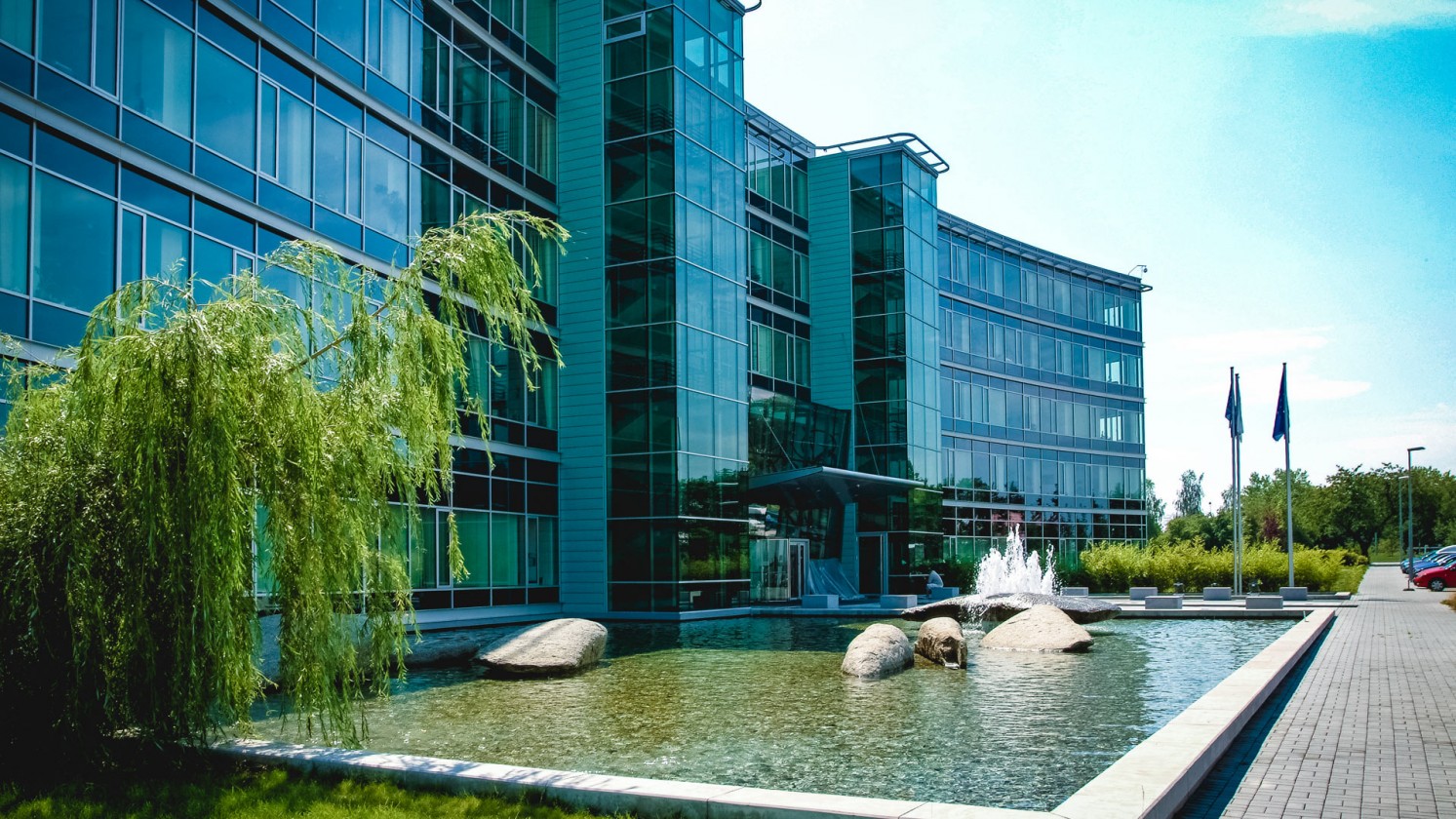

Application Inspiration:
Technical Specifications
| MP 150 |
MP 200 |
MP 300 |
|
| Material | Stainless Steel AISI 316L | Stainless Steel AISI 316L | Stainless Steel AISI 316L |
| Inlet BSP/NPT | 1½″ | 2″ | 3″ |
| Nozzle’s Orifice (D) | 41 mm | 53 mm | 81 mm |
| Dimensions |
190 | 365 | 56 | 125 | 135 | 210 | 430 | 69 | 75 | 180 | 355 | 527 | 104 | 75 | 242 |
| Integrated Swivel Ball Joint | Optional | Optional | Optional |
| Suction Strainer Openings Required | 5.0 mm | 6.0 mm | 8.0 mm |
| Spray Height ▼ | Flow | Head [Lpm] | [m] |
Flow | Head [Lpm] | [m] |
Flow | Head [Lpm] | [m] |
| 0.5 m | 127 | 2.0 | ||
| 1.0 m | 165 | 3.3 | 237 | 2.7 | 474 | 3.3 |
| 1.5 m | 195 | 4.5 | 280 | 3.7 | 560 | 4.6 |
| 2.0 m | 221 | 5.6 | 316 | 4.6 | 634 | 5.9 |
| 2.5 m | 242 | 6.7 | 356 | 5.8 | 678 | 6.8 |
| 3.0 m | 266 | 8.2 | 386 | 6.8 | 741 | 8.1 |
| 4.0 m | 293 | 10.2 | 439 | 8.9 | 866 | 11.1 |
| 5.0 m | 307 | 12.2 | 477 | 11.0 | 1016 | 13.5 |
| 6.0 m | 502 | 13.1 | 1153 | 16.2 | |
| 8.0 m | 1426 | 21.8 | ||
| 10.0 m | 1700 | 27.7 | ||
| 12.0 m | 1973 | 33.8 | ||
| 14.0 m | 2247 | 40.2 |
