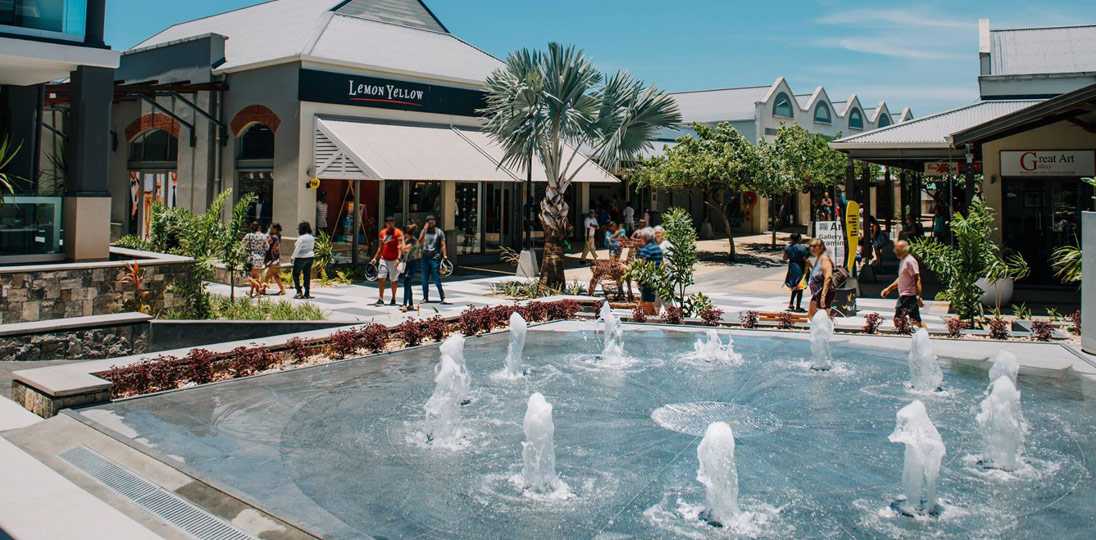

McArthurGlen Mall

One of the most popular solutions for Dry Deck Fountains, the FPK1000, is a constant flow (not programmable) fountain kit for splash pads. It is made entirely of Stainless Steel, and the integrated, programmable lighting makes it spectacular in the evenings.

The FPK 1000 is designed to be safe to walk on as it is absolutely flat, flush-mounted, and can be combined with a wide range of nozzles. This kit incorporates two XL300 solid-unibody luminaires in RGBW or White for incredible lighting performance on every type of water effect.

Even though the water stream is not programmable, the programmable lights can create impressive, million-color light shows. Using VFDs can further enhance the water pattern, leading to remarkable results.

This Dry Deck kit comes with a round or square cover, and all nozzles come with a swivel connection to be easily aligned. The heavy-duty stainless steel construction offers excellent impact & corrosion resistance and allows for effortless installation and maintenance.

  • Constant Flow Dry Deck Kit
  • Premium Stainless Steel Construction
  • Zero Flow Performance Loss
  • Beautiful Finishing
  • Remarkable Construction Quality
  • Flush Mounted, Trip-Safe
  • Vivid Colors & Powerful Lighting
  • Wide selection of Nozzles & Heads
  • 256 Levels of Active Thermal Protection
  • Easy Installation
  • High Corrosion & Impact Resistance

Application Inspiration:

fontana fountains dry deck fountain kit FPK 1000 high resolution photo

Stainless Steel

The FPK 1000 is made of pure, heavy-duty Stainless Steel. The light fixtures are made of a solid block of Stainless Steel. The strong top cover is specially treated to withstand impacts and loads, while the premium finishing provides a long-lasting sheen, exceptionally resistant to corrosion and deterioration.

Precision Engineering

The “Precision Engineering” philosophy of Fontana is evident in every element. Intelligent and exceptionally precise CNCs process the parts of the FPK 1000. Every bit is carefully designed for a specific purpose, and all parts fit with each other perfectly, in a factory-assembled system.

Safety First

The top surface of the FPK 1000 is specially treated and designed for increased slip resistance – shoes on or not. And being entirely flush into the ground, the FPK 1000 cover helps keeping toes and heels safe. Additionally, all electrical parts run on low voltage.

Commercial Grade

All parts of the FPK 1000 are made for use in commercial applications. Demanding projects, challenging environmental conditions, unattended access to the public, strict regulations, and erratic maintenance are precisely what the FPK 1000 is made for.

It’s the incredible materials knowledge we have mastered that allows us to create such remarkable products.

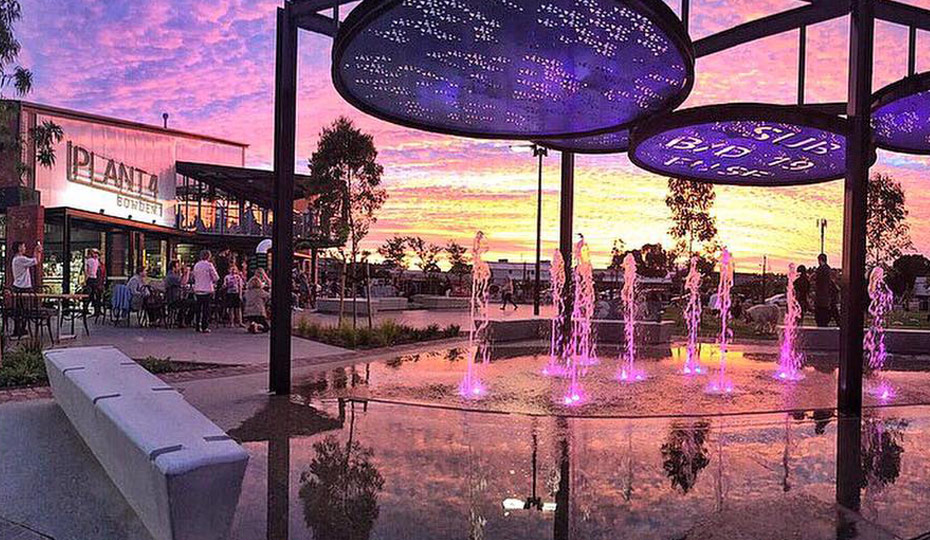

Photo of Bowden Park project by Fontana

Project Spotlight

Bowden Park, Australia

Show-grade Lighting

Using our latest and most advanced technologies, the FPK 1000 offers incredible intensity and vibrant colors, achieving show-grade lighting qualities.

Vivid Lighting

The FPK 1000 uses Fontana’s successful XL300 light fixtures. Vibrant colors, high color fidelity on the entire spectrum, and perfect power-to-lumens ratio translate to magical lighting shows and unforgettable experiences.

Smart Technologies

A genius little LED module. Packed with technology: embedded microprocessor, comprehensive self-protections, advanced color processing capabilities, digital data transmission, interference-proof, universal control — to start with.

Application-specific Optics that concentrate light on the jet.

Embedded Microprocessor constantly monitors the fixture.

Active Thermal Protection for enhanced operation & lifespan.

Works with long cables without being affected by voltage drop.

Learn more about Technologies

Photo of Fontana G3 led:bus processor

The embedded microprocessor. It’s a masterpiece of lighting electronics control and the heart of our technology. A technology we constantly refine and improve for longer than 17 years.

The brain of the system constantly monitors the fixture status & temperature, optimizing performance on the fly. It communicates with the controller receiving and interpreting data about ID, color and intensity.

At the same time, the system ensures that data get delivered consistently and intelligent sub-systems keep an eye for possibly improper electrical conditions, blocking off noise and interference.

Advanced Electronics — our best technologies yet. Each Fontana LED module looks like a small computer. The profound attention to detail you would expect of Fontana is evident in every sub-system.

Unparalleled Color Fidelity. The color engine uses high-definition drivers, embedded on the PCB. This method allows for accurate, high-precision and high-fidelity control of each LED.

Famous Reliability. The discrete components of the PCB are carefully selected to meet the strictest quality, reliability and performance standards. The smart self-protections further improve the resilience of the fixture.

led:bus

led:bus is a language. It’s the language that all Fontana lights speak – a technology that we designed from scratch for underwater devices. It’s fully compatible with other languages like DMX, DMX/RDM and Dali. But with led:bus you don’t need to learn anything new, because led:bus is made to work behind the scenes – autonomously and reliably. Led:bus also allows the use of fewer and smaller cables to power and control multiple light fixtures leading to significant cost and resources savings.

With led:bus, all you have to do is connect the cables — and the whole system works by itself. The simplicity of led:bus leads to neater, more organized and manageable installations of complicated systems.

86% Lower Cable Costs
40% Faster Installation
Resources Savings
Interference-Proof
3-core cables

Simple 3-core Cables

You can use simple, non-shielded 3-core cables to power & control multiple fixtures.

led:bus ID

Addressable Fixtures

Each light has a unique ID and can be configured to listen to a specific address for multi-color light shows.

led:bus ID

Integrated Drivers

The LED drivers are integrated to the module simplifying everything and significantly reducing costs.

led:bus ID

Industrial-Grade

led:bus is a heavy-duty, extremely reliable communication protocol. It is encrypted too.

led:bus is compatible with DMX, DMX/RDM & DALI

Voltage Drop: Irrelevant. Traditional LED technologies are severely affected by voltage drop. When longer cables are used, the lights further away from the power supply have lower intensity. In some occasions, they might not even work at all.

The Fontana technology is unaffected by voltage drop. Fixtures work at their full potential on any voltage between 12-24V DC (true margins: 10V to 36V DC). Every fixture outputs 100% of its intensity regardless of how far it is from the power supply.

Reverse Polarity

Active Thermal Control

Constant, real-time balancing of Temperature and Performance.

Reverse Polarity

Reverse Polarity

Protected from accidentally incorrect connections.

Reverse Polarity

Voltage Surge

Protected from sudden surges in the circuit voltage.

Reverse Polarity

Flicker-Free

Industry-leading Technology that eliminates flicker at 4.6KHz.

Niched format for embedded
installations also available.

Certificied Excellence

Fontana lights certificates

Technical Specifications

Mechanical

Diameter:
400mm 15.7 inches

Height:
115mm 4.5 inches

Cover/Frame Thickness:
4.0mm + 4.0mm 0.16in + 0.16in

Mounting:
Frame Installation

Cover:
Round   Square on request [.SQ]

Materials

Stainless Steel AISI 304 1.4301

Also available in Stainless Steel AISI 316L [1.4304] and AISI 316Ti [1.4571]

Made of heavy duty Stainless Steel parts, satin finished with bead-blasted, shiny and brushed details. Electrical, fixture, manufacturer and certifications details are permanently laser marked on the fixture.

Application

Fresh, Pool and Sea water

Nozzle

Smooth Bore ⌀12mm

Available with 14mm Smooth Bore, Cluster Jet, Lily and other nozzles on request.

Refer to the Hydraulic Performance Table to review the flow requirements of available nozzles.

Inlet

1” Female BSP

Available with NPT thread. Inlet size depends on nozzle selection.

Lighting

RGBW

2 x 11W

Color: RGBW – 4.1 billion colors
Lumens: 1280
LEDs: 2 x 4 High Power LEDs
Control: led:bus

RGB

2 x 7.5W

Color: RGB – 16.7 million colors
Lumens: 750
LEDs: 2 x 3 High Power LEDs
Control: led:bus

Warm White

2 x 13W

Color: White 3000K
Lumens: 3030
LEDs: 2 x 3 High Power LEDs
Control: Electrical

All white models are also available in dimmable versions, compatible with DALI.
Color versions are using led:bus, compatible with DMX/RDM.

Custom colors and color temperatures are available on request.

Voltage

12-24V DC

10-30V DC Operating Range. Voltage drop does not affect light intensity.

Glass

Tempered, Heat-Resistant Safety Glass

Optics

24° Advanced Optically-clear Lenses

Also available: 15°, 50°, 80°

Self Protection

Yes

The embedded processors on the fixtures constantly monitor the operation of the fixtures to ensure optimal operation.

The Active Thermal Protection system uses a smart algorithm to gradually reduce the brightness in case of overheating, ensuring the max. possible light output.

Additional hardware systems provide overvoltage, voltage surge and reverse polarity protection.

Flicker-Free

Yes – 4.6kHz

Flicker can lead to unpleasant or even life-threatening conditions. Fontana fixtures utilize industry-leading anti-flicker technologies.

Lifespan

Estimated 120.000 hours

Compliant to the L80 Lumens Maintenance Spec – In 80.000 hours of operation the initial lumens output will not have degraded by more than 20%.

Protection Grade

IP68

Impact Rating

IK10

Safety Class

III

Cable

3.0 meters Chlorine-Resistant Waterproof Cable
12ft type SOOW for North America, UL Listed version

5m, 10m, 15m or custom lengths available on request

Hydraulic Performance & Data

      Clear Stream
Ø12mm
  Clear Stream
Ø14mm
  Cluster
12 x Ø4.0mm
Height   Flow Head   Flow Head   Flow Head
m ft   lpm gpm m ft   lpm gpm m ft   lpm gpm m ft
0.5 1.5   21 5.5 0.6 2.0   30 7.9 0.6 2.0   30 7.9 1.2 3.9
1.0 3.3   31 8.2 1.1 3.6   44 11.6 1.2 3.9   41 10.8 1.8 6.0
1.5 5   39 10.3 1.7 5.6   55 14.5 1.8 5.9   51 13.5 2.5 8.3
2.0 6.6   46 12.2 2.3 7.5   65 17.2 2.4 7.9   58 15.3 3.2 10.5
2.5 8   53 14.0 2.9 9.5   73 19.3 3 9.8   66 17.4 3.9 12.8
3.0 10   58 15.3 3.5 11.5   81 21.4 3.7 12.1   71 18.8 4.6 15.1
4.0 13   68 18.0 4.8 15.7   94 24.8 5 16.4   85 22.5 6.1 19.9
5.0 16   76 20.1 6.1 20.0   105 27.7 6.2 20.3   93 24.6 7.8 25.5

.
